avi 200-XL
Description

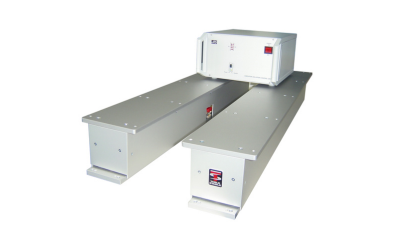

The basic configuration of the AVI 200-XL includes two single elements and one control unit and can isolate actively up to a maximum load of 400 kg. Higher loads can be easily accommodated by increasing the number of isolation elements. To adapt the AVI 200-M to user specific applications, single elements in different lengths are available to special order.
AVI 200-XL compact units do not require any large tools for installation. Table Stable strives to offer easy, user-friendly handling of equipment, avoiding any complicated procedures when placing a heavy device (e.g. an SEM) on their units.
Features
- The isolation of AVI 200-XL begins at 1 Hz, increasing rapidly to 35 dB beyond 10 Hz.
- Isolate actively up to a maximum load of 400 kg.
- The lack of any low-frequency resonance results in better performance than common passive air damping approaches.
- The inherent stiffness of the AVI 200-XL systems imparts excellent directional and positional stability.
- The outstanding performance of the AVI 200-XL includes all six translational and rotational vibration modes.
SPECIFICATIONS
| Dimensions | Top plate: 820×130 mm Bottom plate: 856×84 mm Height: 112.5 mm |
| Weight | 12 kg (Single unit) |
